The Combine Truss tool has new functionality available since the release of the 24.01.02. version. This command will allow you to select existing truss types and combine them with the same truss type regardless of the layer.
This new functionality can increase productivity and expedite the truss editing process by reducing the number of truss types. This can also speed up truss production by needing fewer jig setups and paperwork. Truss installation can be streamlined by having fewer truss profile types to keep up with on the job site.
Steps to Combine Trusses

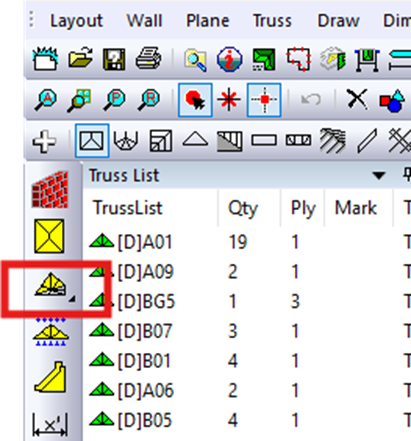

- Select the Trusses icon on the left vertical toolbar.
2. Select the Combine Truss icon from the toolbar.

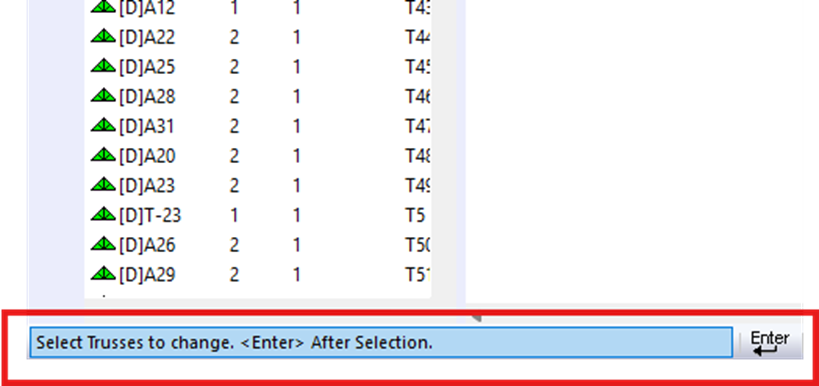

3. You are prompted to select the trusses you want to change.

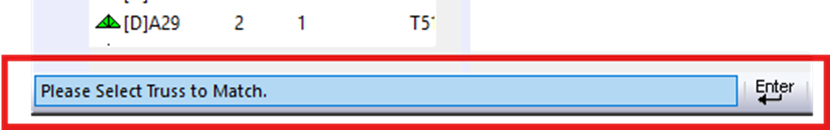

4. The last step is to select the truss(es) you want to match them to.
