You have multiple options in the View Truss dialog window to display your trusses. You can toggle between having the pieces filled with a wood grain color or not filled in at all. The options shown below gives you a glimpse of what each option looks like.

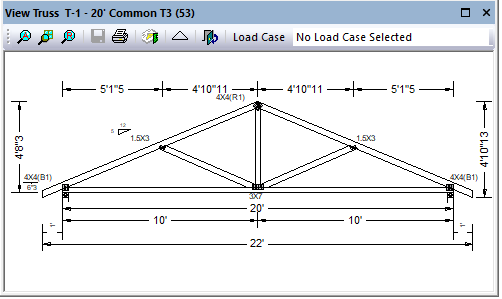

Fill Pieces With Solid Color not selected:

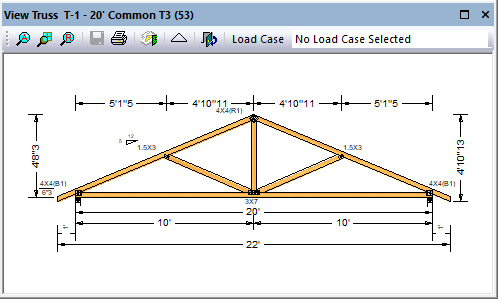

Fill Pieces With Solid Color selected:
You can find the option for Fill Pieces With Solid Color here:
1). Select "Settings" and "User Preferences".
2). From the User Preferences dialog window select the Colors tab.
3). From the Colors tab select the Fill Pieces With Solid Color check box and then click "OK" to save and exit the dialog window.
