When adding angle walls, there are two different methods depending on the information available to you.
Should you know the horizontal and vertical dimensions, (X) and (Y), then you can type them in this format: "X Y"
Please note that the "-" or negative is determining the direction from your reference point.

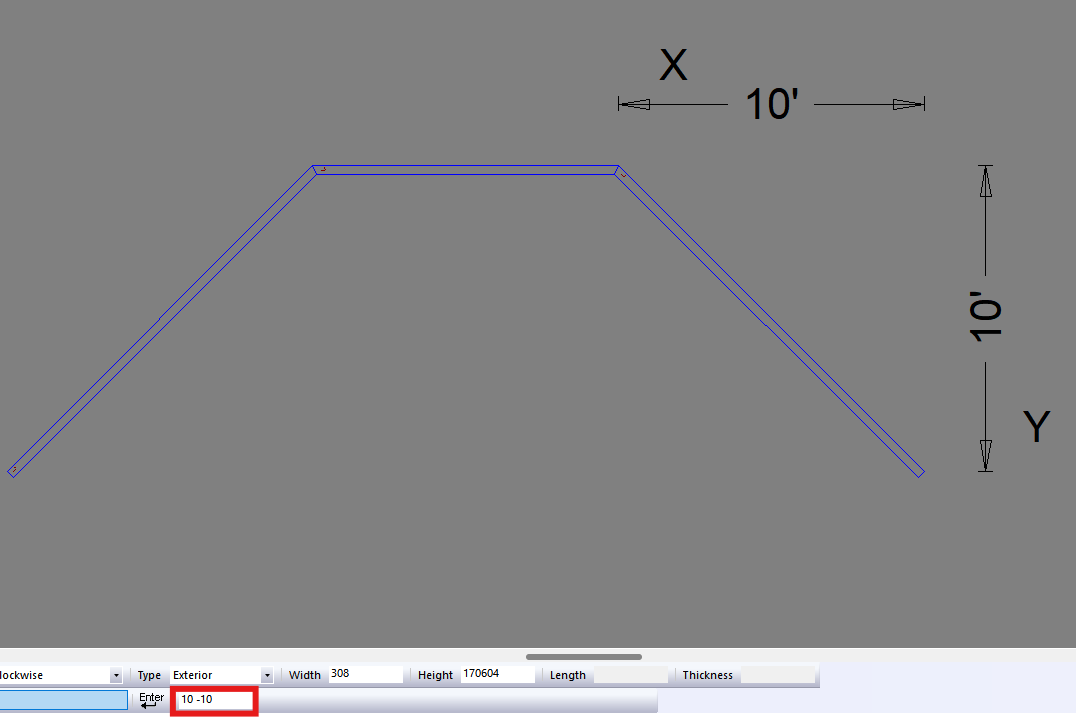

In the image above, the 10 -10 is the right wall, moving 10' to the right for our X and 10' down for our Y.

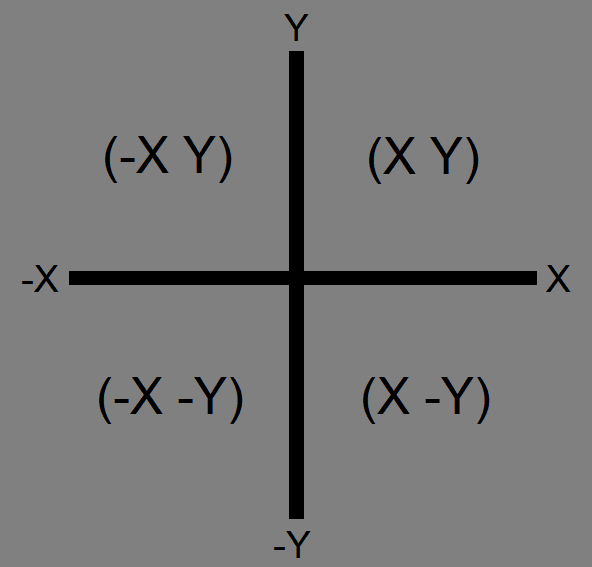

Below is a graph to help visualize when you will need a - in front of your dimension.

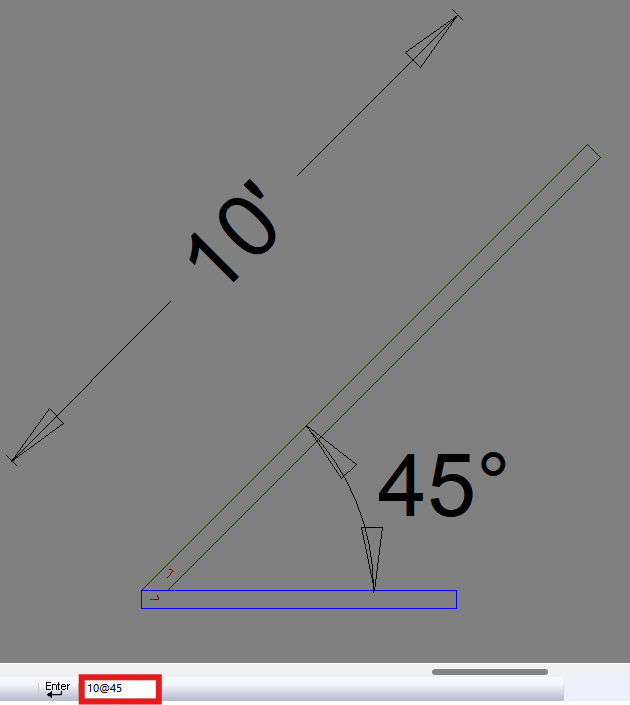

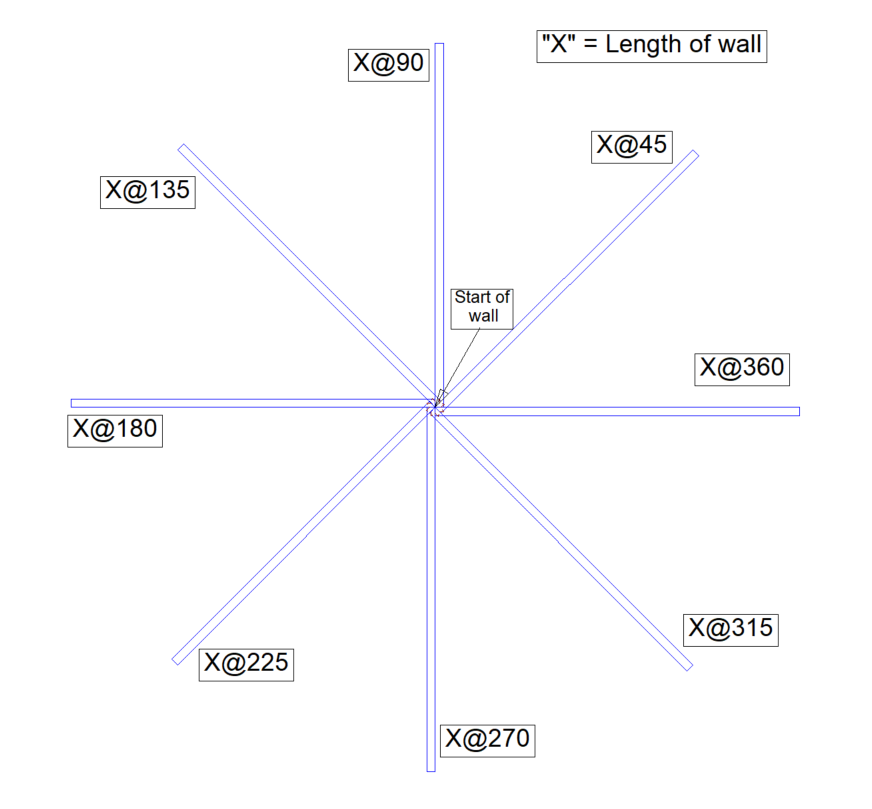

In the event that you have a length of your wall and the angle you will use the format Wall Length@Angle.
Please reach out if any further assistance is required.
