If you're encountering issues with component drawings—especially related to outdated lumber values—you may need to reconfigure your file path settings and ensure the correct .rls file is selected.
⚠️ Common Error Message
"This design is based on lumber values in effect prior to June 1, 2013 and shall only be used on projects designed and permitted prior to this date unless specifically approved in writing..."
This message indicates that the drawing references outdated lumber specifications. To resolve this, follow the steps below to re-path your component drawing settings to the correct file.
Steps to Re-Path Component Drawings
-
Open Job Settings
Launch your application and navigate to Settings > Job Settings. -
Access Component Drawings
Within Job Settings, locate and click on Component Drawings. -
Re-Path to the Correct Folder
Update the path to:C:\intelliVIEW\iModel\US\Usr01 then select the Notes.rls file
-
Select the Correct File

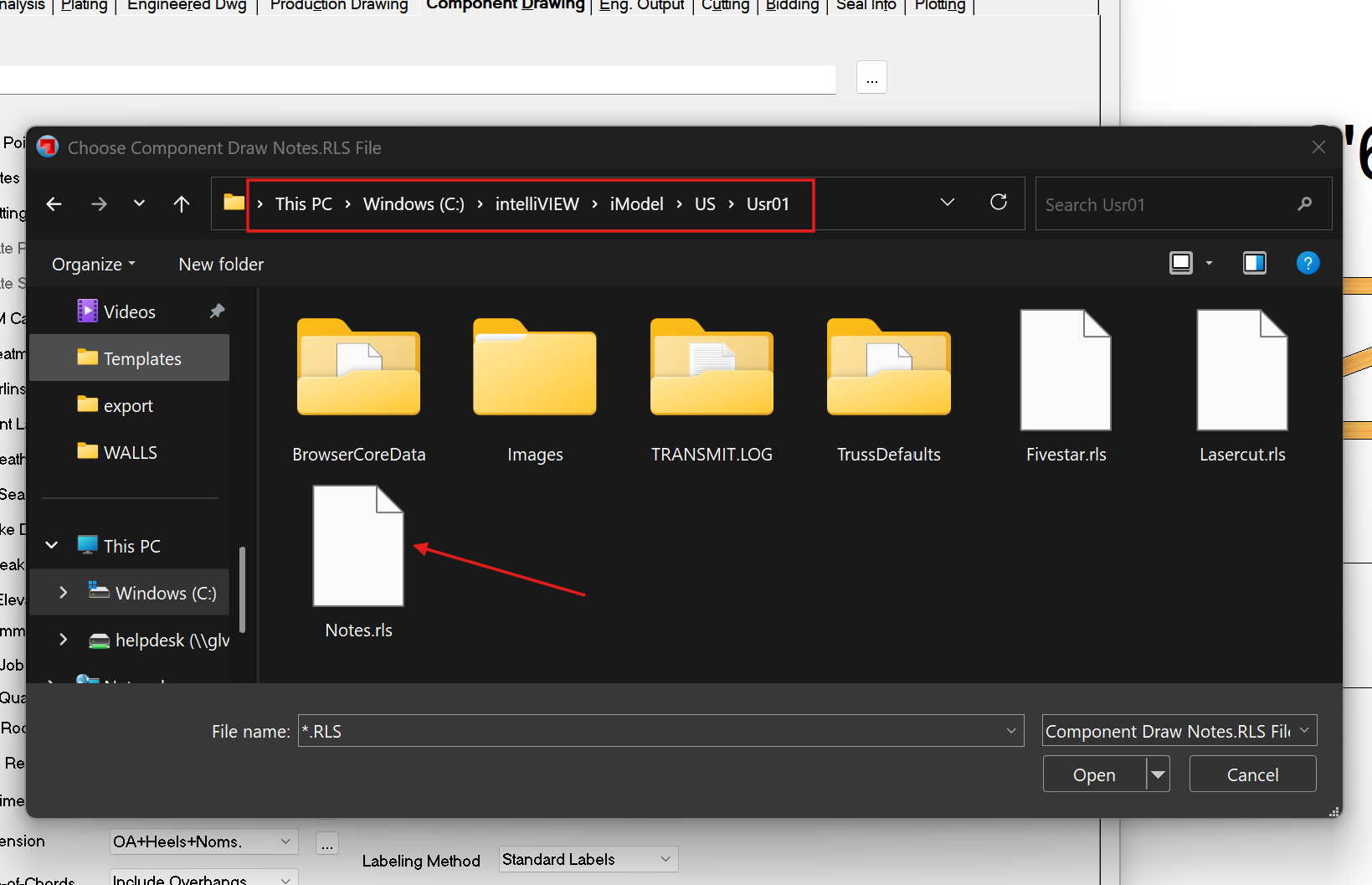

In the file selection window titled Choose Component Draw Notes.RLS File, locate and click on Notes.rls.Choose Component Draw Notes.RLS File
This file contains updated drawing notes that should align with current lumber specifications.
-
Confirm and Apply
Click Open to apply the selection, then test the configuration by generating or accessing the component drawings again.
