Add or remove truss analog lines – Solutions Network

Take these few easy steps to add or remove truss analog lines.

Launch the iDesign program.

Then select the Engineer icon from toolbar.

Select the Options icon from the toolbar.

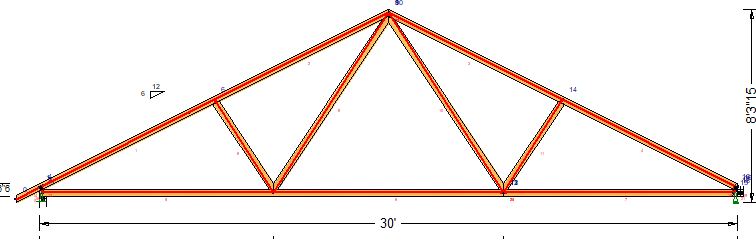

Then select the Show tab. From here you can choose to show the analog lines like the truss below.

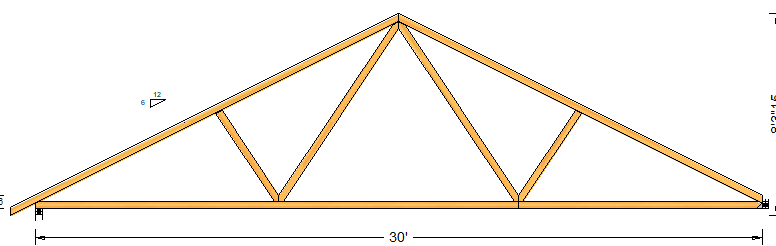

To remove the analog lines just deselect the Show Analog box and the truss will no longer have them like the truss below.
