If you ever experience the error code: Span Points selected yield a zero Span! Please adjust Span Points.
Follow the steps below to easily resolve:
1.) From the vertical toolbar select the Tools icon.
2.) Then, select the Modify Layout icon.
3.) Next, select the Move icon located at the bottom of the screen.
Next, you'll need to highlight the entire layout by box selection. *Note: Unlock all layers first if applicable.
Once everything is selected you'll follow the prompts located at the bottom left of your screen.
*Note: Always best practice to select the lower left corner of your layout as your point to move from.

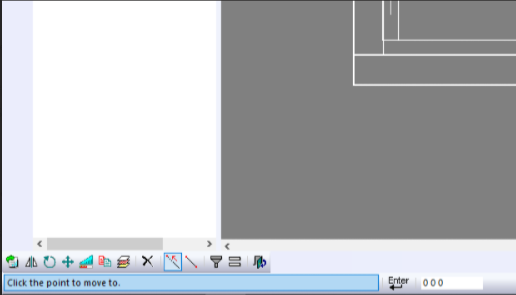

When prompted to click a point to Move To' point, you will type in "0 0 0" in the input field at the bottom of the screen. Ensure that you have a space between each of your zeros.
After this is completed, you should no longer have problems adding a truss condition.
Please reach out if any further assistance is required.
