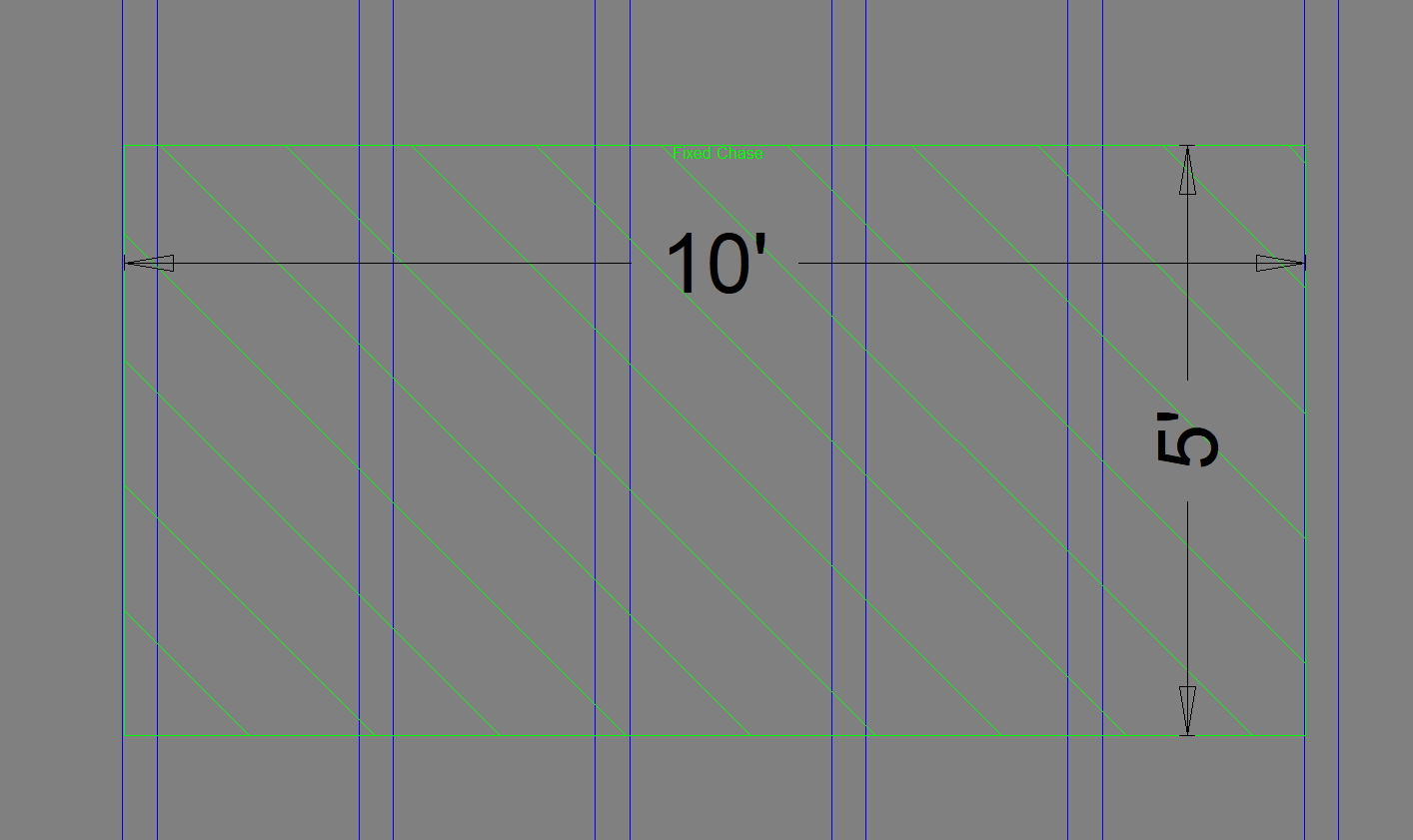

When adding floating chases, fixed chases, or other 3D openings, you may want to hide the dimensions and labels for the opening area.
To do this:

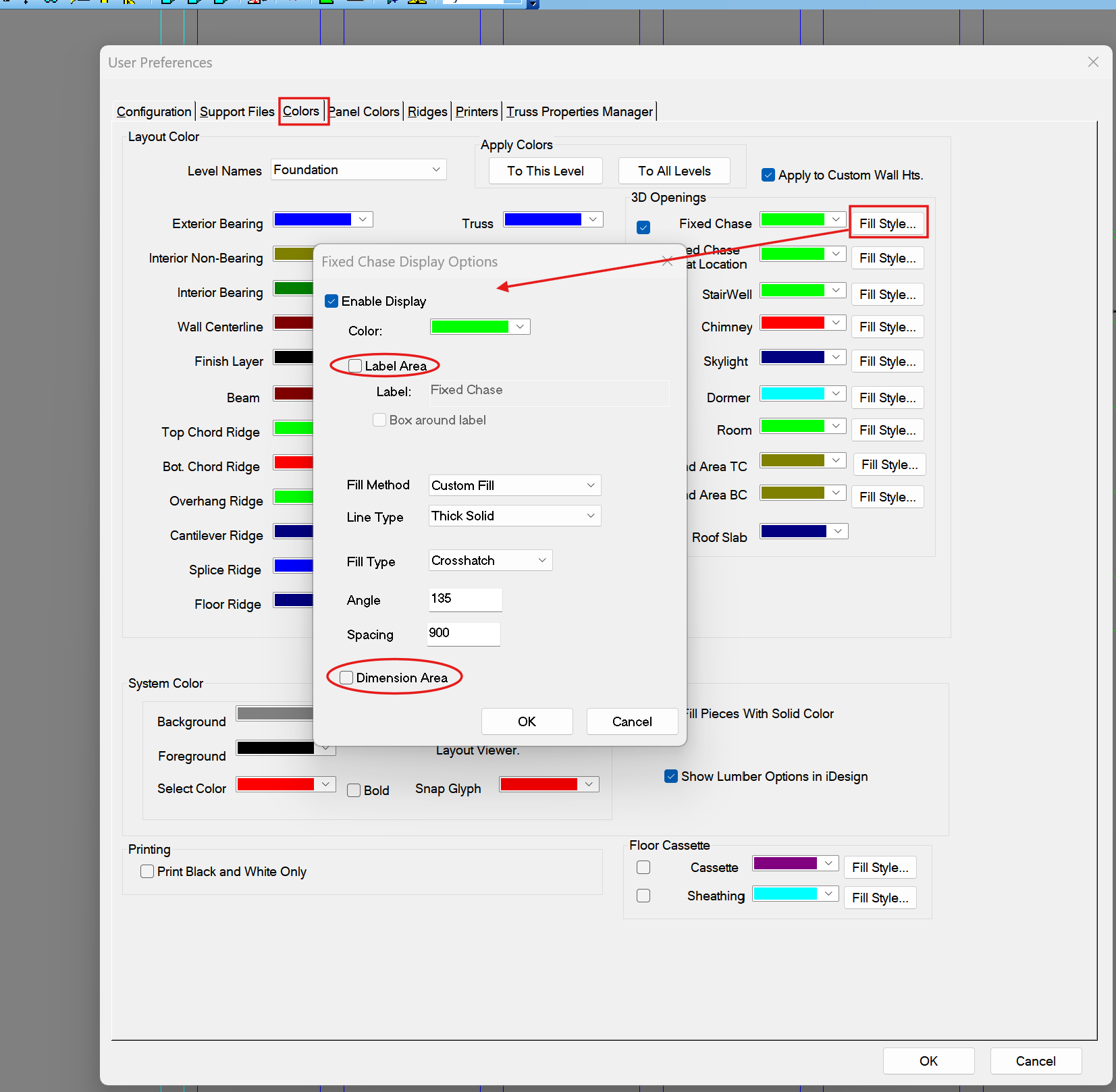

- Go to Settings → User Preferences → Colors.
- Uncheck the highlighted boxes (these options are enabled by default).
- Click Apply Colors and choose whether to apply the change to:
- This level only, or
- All levels.
- Re-add your opening.

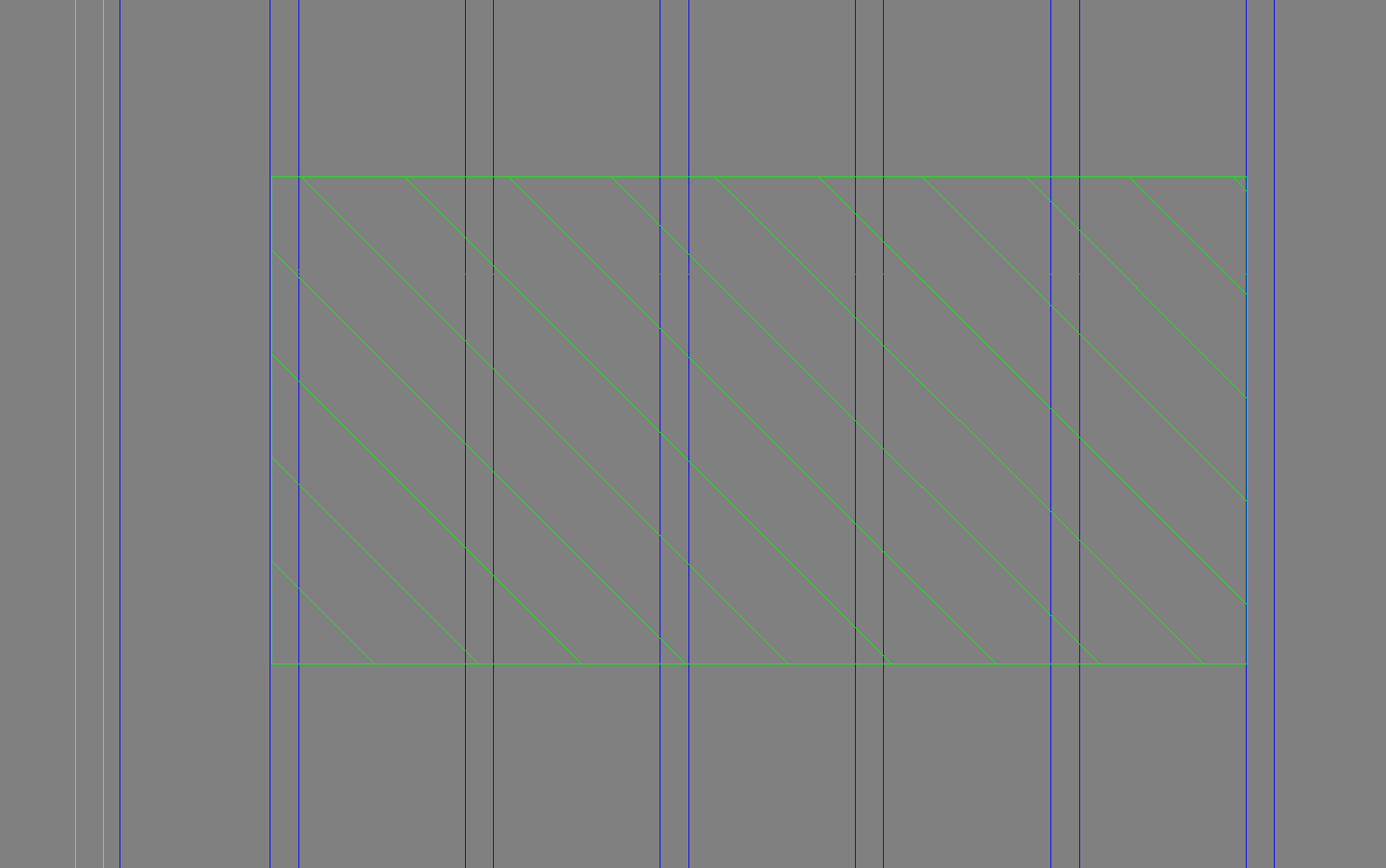

Once complete, the opening will display without dimensions or labels, as shown in the image below.
